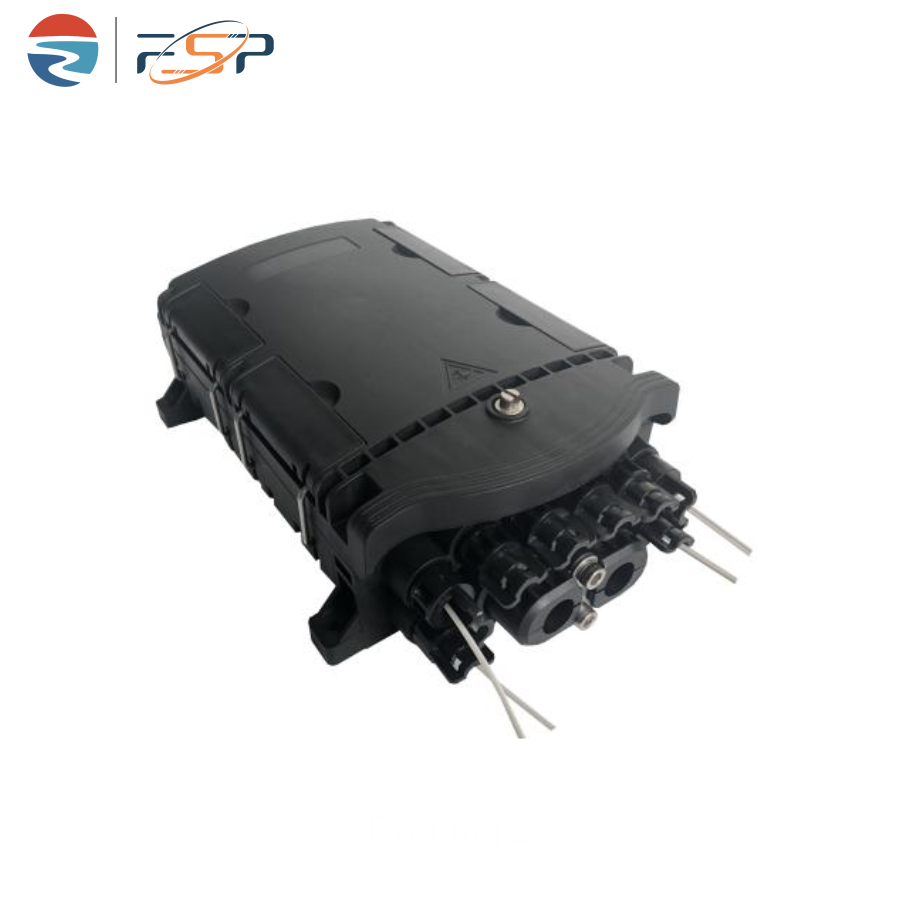

FSP-P-08-Q details

1、Description

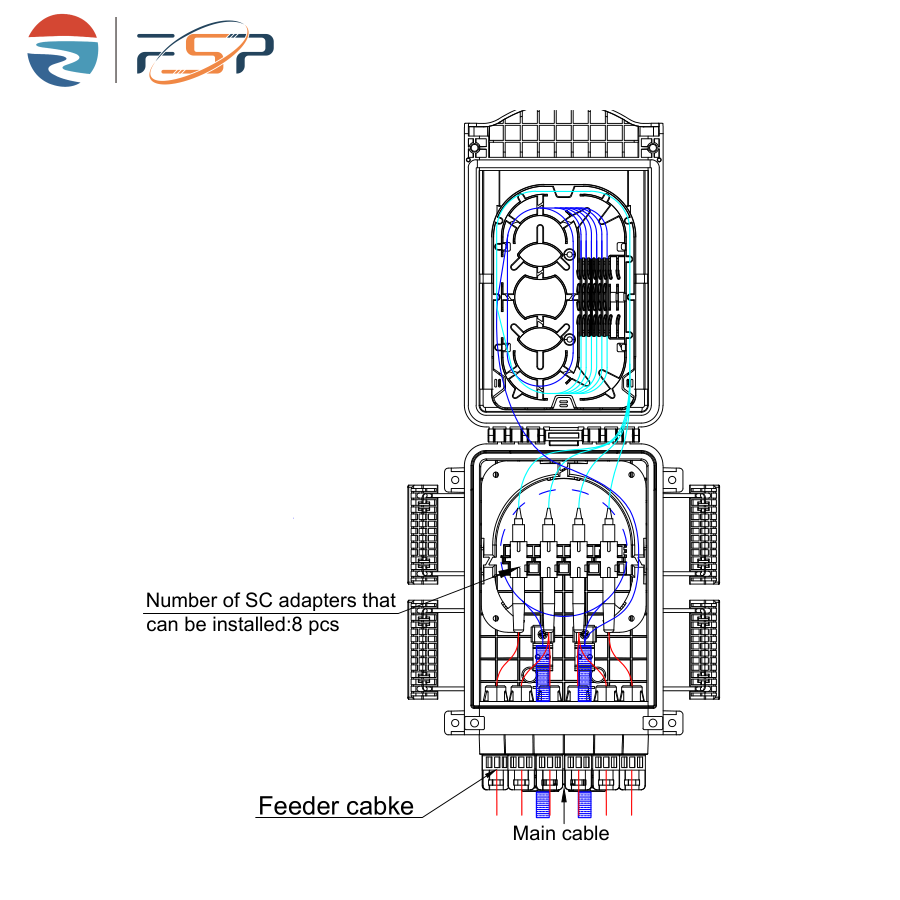

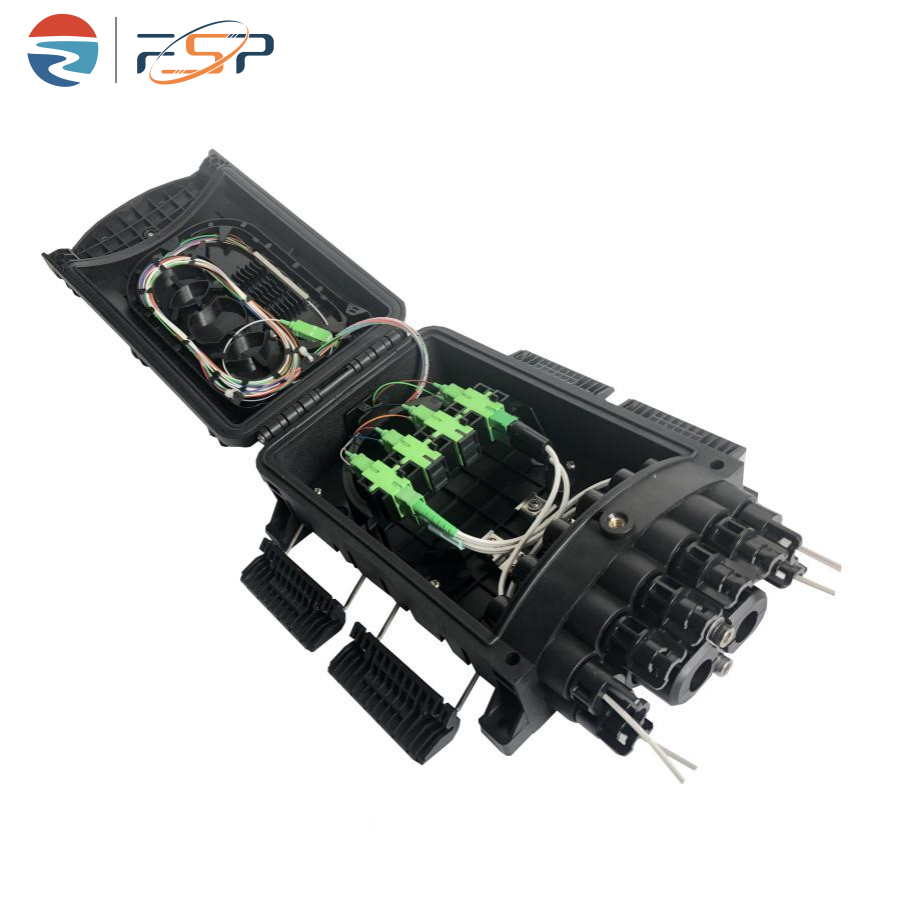

 FSP-P-08-Q Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


2、Specification

  • Advanced structure design, easy operation and reasonable routing.

  • Material: PP or PC+ABS.

  • Moisture proof, waterproof, dust-proof, anti-aging.

  • Protection level up to IP68.

  • 1 oval optical cable entry

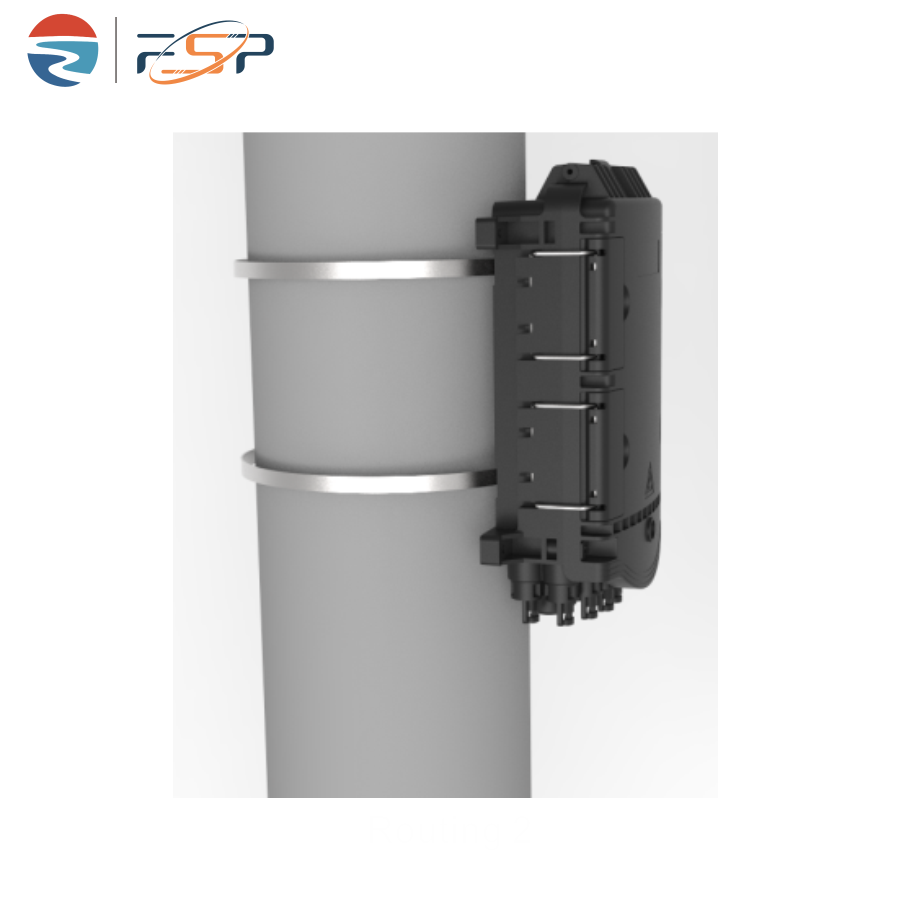

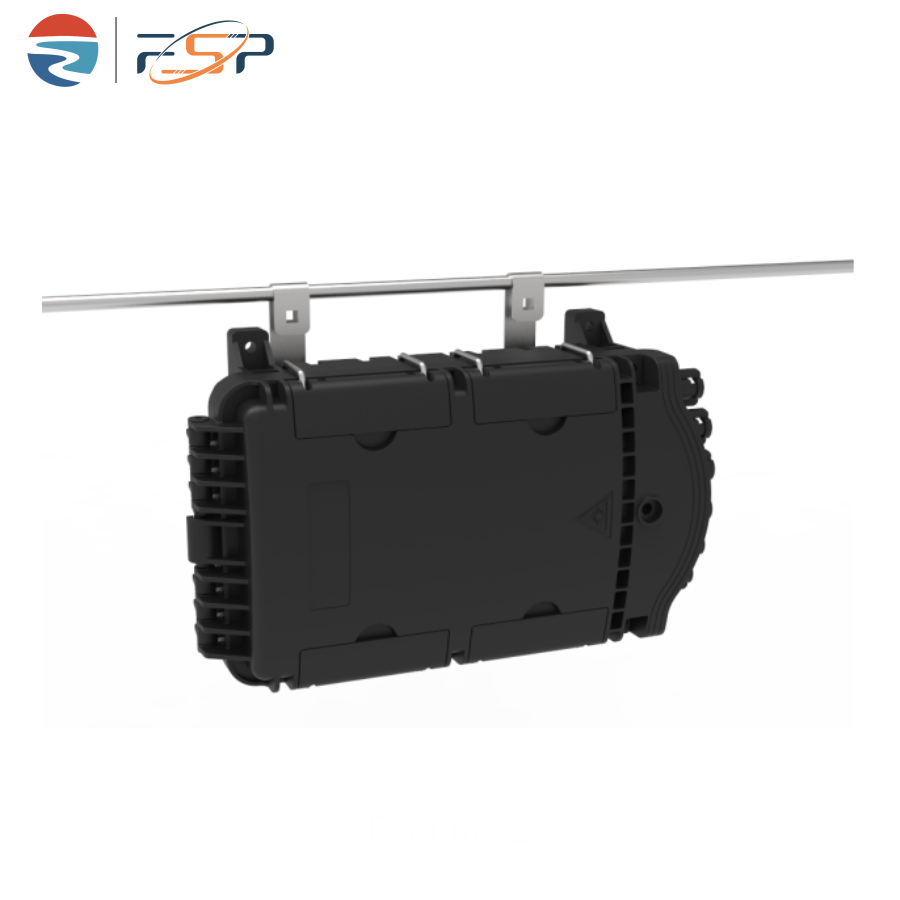

  • Installation method: pole-mounted, aerial-mounted, wall-mounted.


3、Applications

1) FTTHaccess network

2) Telecommunication network

3) CATV networks

4) Datacommunications network

5) Localarea networks


4、Configuration Table


Model
FSP-P-08-Q
Size

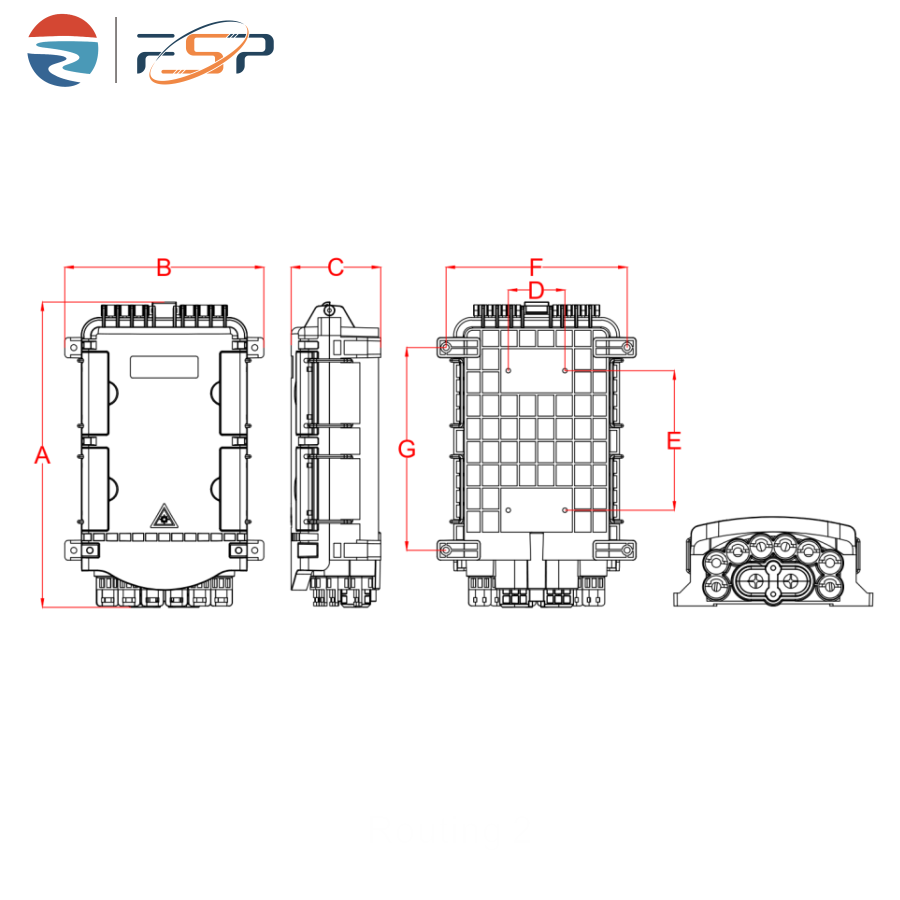

H×W×D = 280 x 182 x 82 (MM)

Into the largest cable diameter (mm)

ᴓ15

Color

Black

Splice Capacity
12 Cores
Adapter Type
SC

IP protection level

IP 68
Installation Method
Wall / Pole / Aerial Mounted
