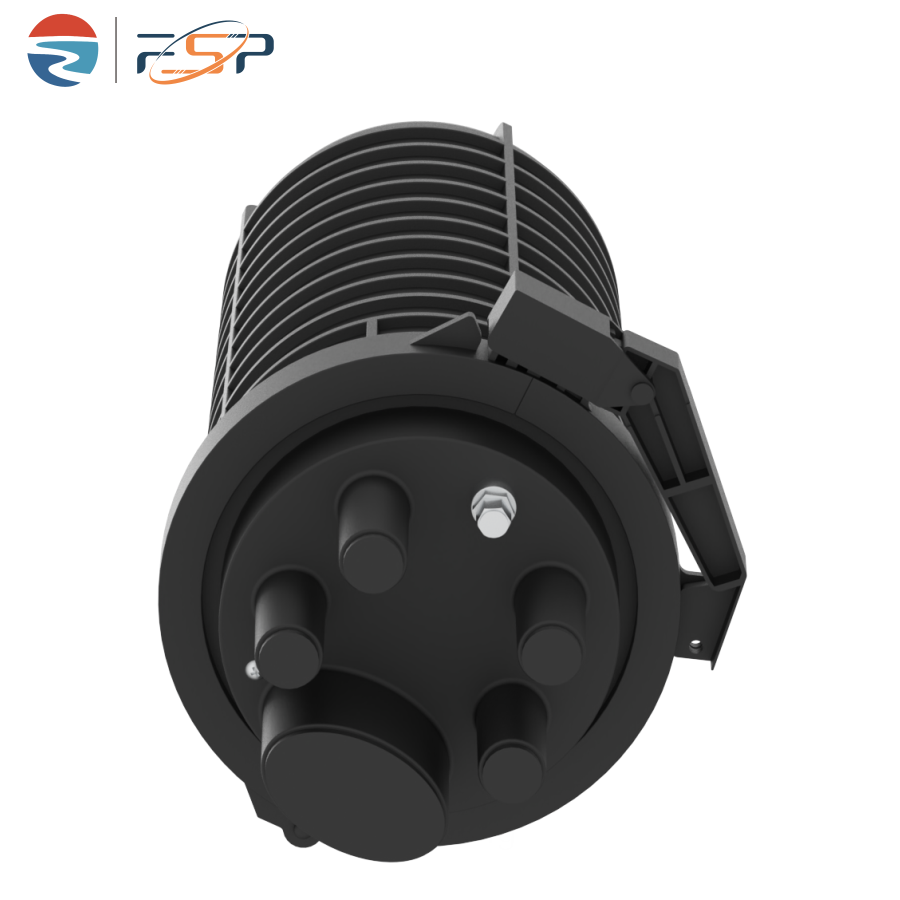

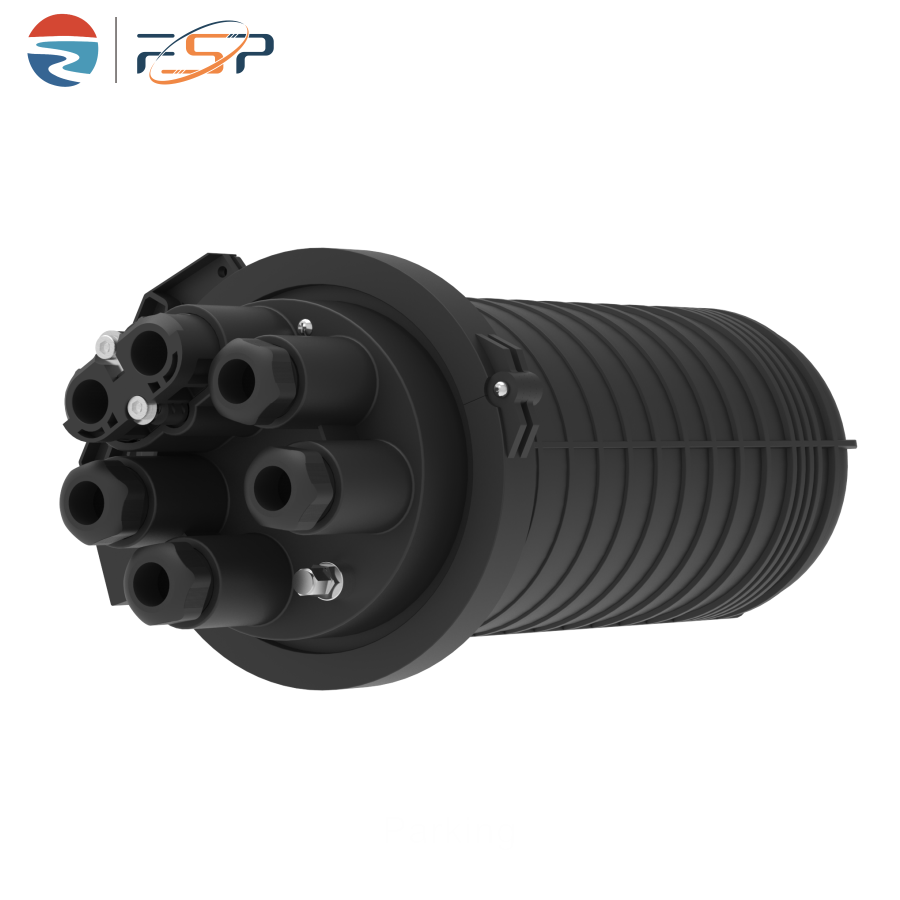

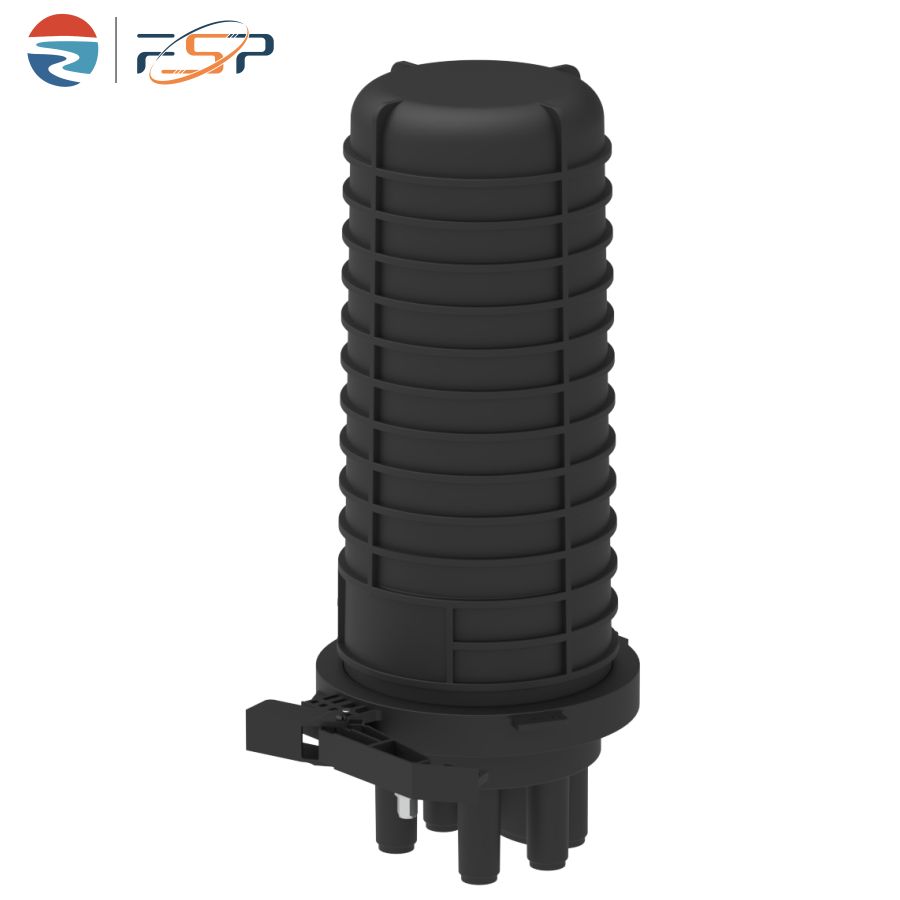

1、Description：
FSP-CD-12 Fiber Optic Splice Closure is mechanical sealing / heat shrink sealing closure intended for up to 144 cores cable splice. It is designed for use with different cable construction in any environment (duct, aerial, buried and man-hole) and for numerous splice applications as mid-span, branch and direct splice. 24 cores splice trays are available for different cable.
2、Specification：
1) The casing of enclosure is made of PP,which is a kind of high-strength engineering plastic.
2) Reliable cable introducing, fixing, protection, grounding devices. Easy for re-entry and re-open.
3) The base has a variety of ports for different type of cable,the oval port is used for uncute cable.
4) High-strength modified polypropylene material ,Protection grade: IP68.
3、Configuration Table：
|
Model |
FSP-CD-12 |
|
Environment |
Aerial, direct buried, pipelined, wall mounting, manhole |
|
Splice Capacity |
24 Cores |
|
Splice Trays |
6 Pcs |
|
Cable entry ports |
6 Ports (Max Φ18mm, 2 Ports For Uncut Access) |
|
Protection Level |
IP68 |
|
Color |
Black |
|
Body Material |
PP |
|
Dimension |
H × D = 470 × Φ180 mm |

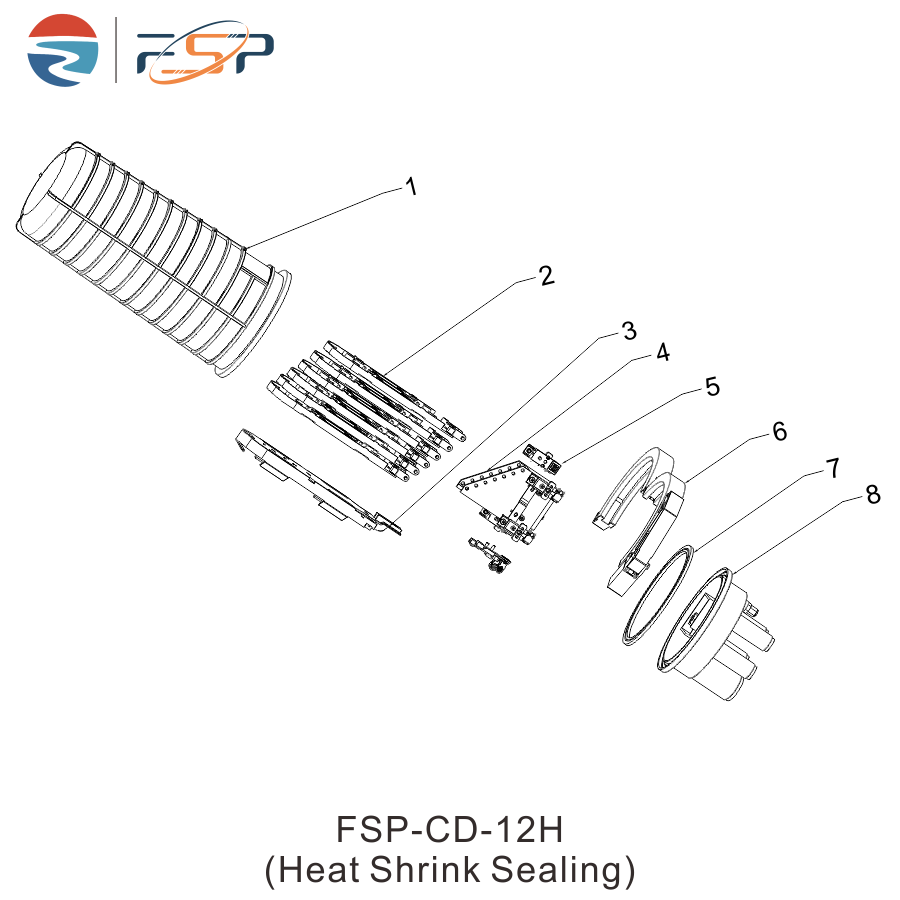

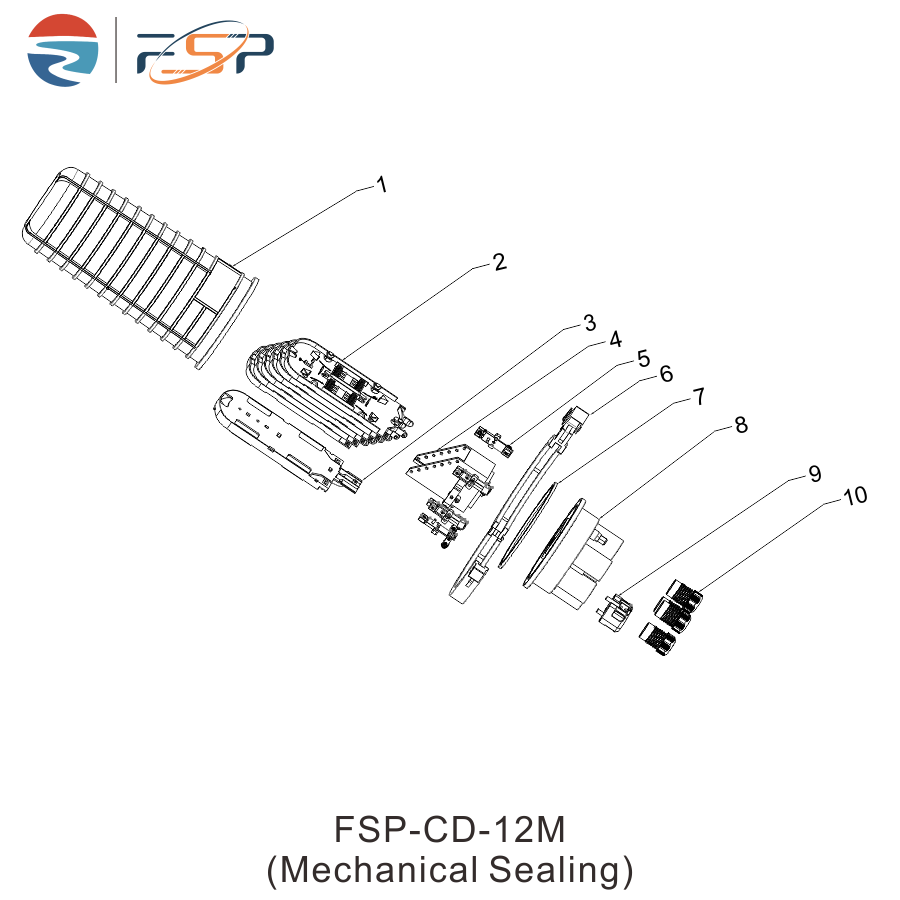

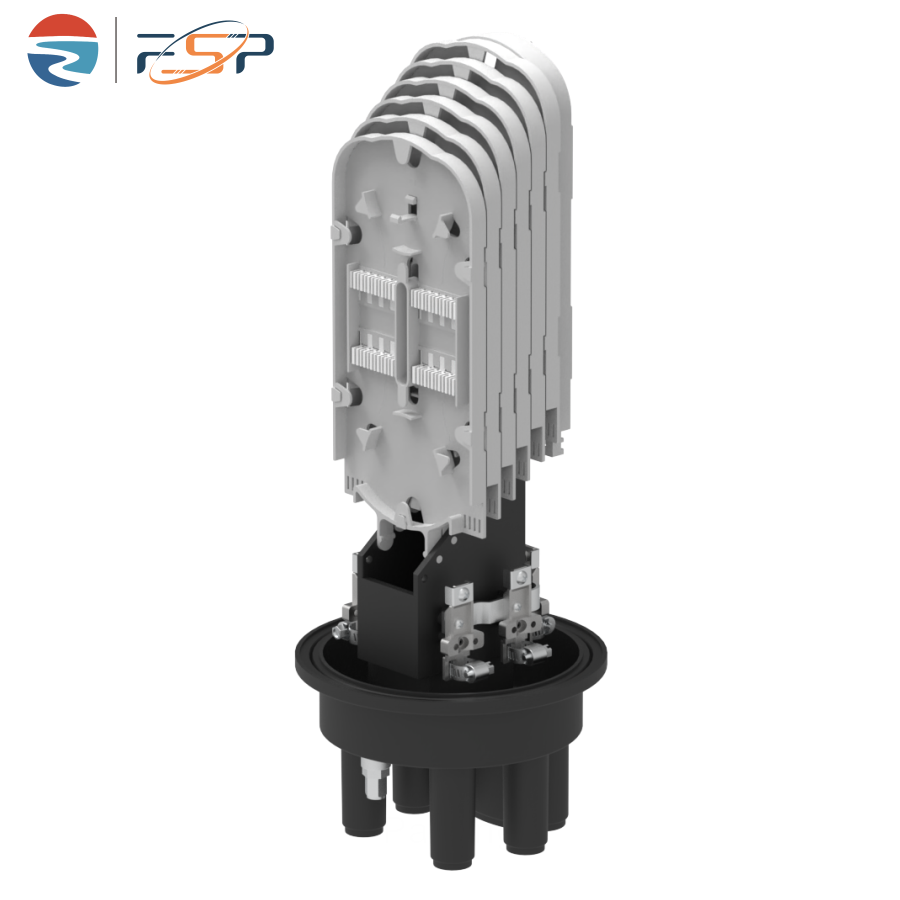

4、Product structure
|
No. |
Name |
Unit |
Qty |
Remark |
|
1 |
Cover |
Pc |
1 |
|
|
2 |
Splice Tray |
Set |
6 |
24 Cores / Tray |
|
3 |
Cable Storage |
Pc |
1 |
|
|
4 |
Bracket |
Pc |
1 |
|
|
5 |
Cable Fixing |
Set |
4 |
1 Set For Uncut |
|
6 |
Clamp |
Set |
1 |
|
|
7 |
Sealing Ring |
Pc |
1 |
|
|
8 |
Base |
Pc |
1 |
|
|
9 |
Mechanical seal module |
Set |
1 |
For Uncut |
|
10 |
Mechanical seal module |
Set |
4 |
For Single Cable |
|
No. |
Name |
Unit |
Qty |
Remark |
|
1 |
Cover |
Pc |
1 |
|
|
2 |
Splice Tray |
Set |
6 |
24 Cores / Tray |
|
3 |
Cable Storage |
Pc |
1 |
|
|
4 |
Bracket |
Pc |
1 |
|
|
5 |
Cable Fixing |
Set |
4 |
1 Set For Uncut |
|
6 |
Clamp |
Set |
1 |
|
|
7 |
Sealing Ring |
Pc |
1 |
|
|
8 |
Base |
Pc |
1 |
