1、Description：
FSP-M-MN-F Series Fiber Optic FTTH Terminal Boxes are terminal points in telecommunication network system. The optical fiber is storaged in this box, and meanwhile it provides protection and management for the FTTx network building.
2、Specification：
1. Wall mountable.
2. Multiple adaptor options available.
3. Splicing option available.
4. Multiple fixing points.
5. Suitable for loose tube and distribution cable.
3、Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks
4、Configuration Table

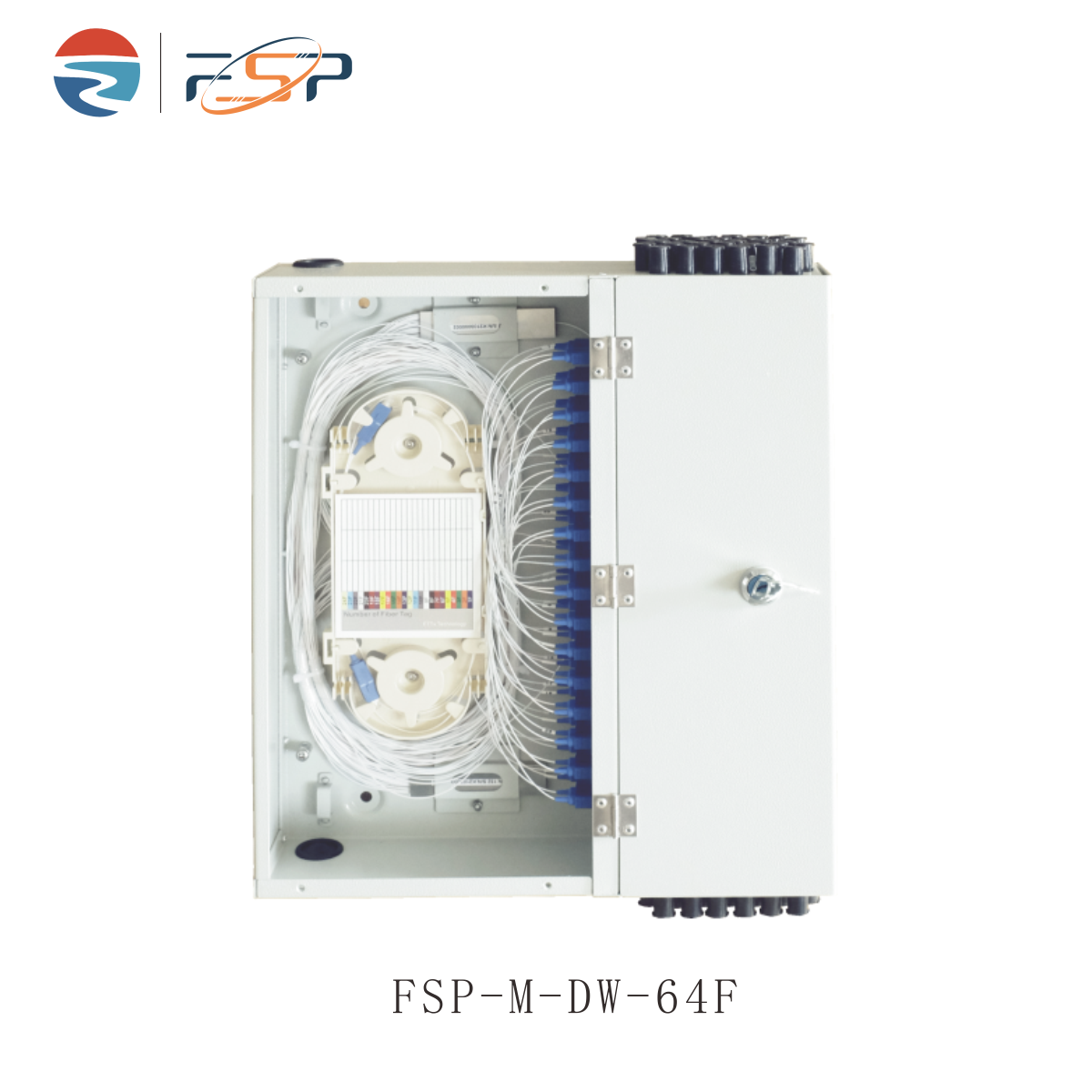

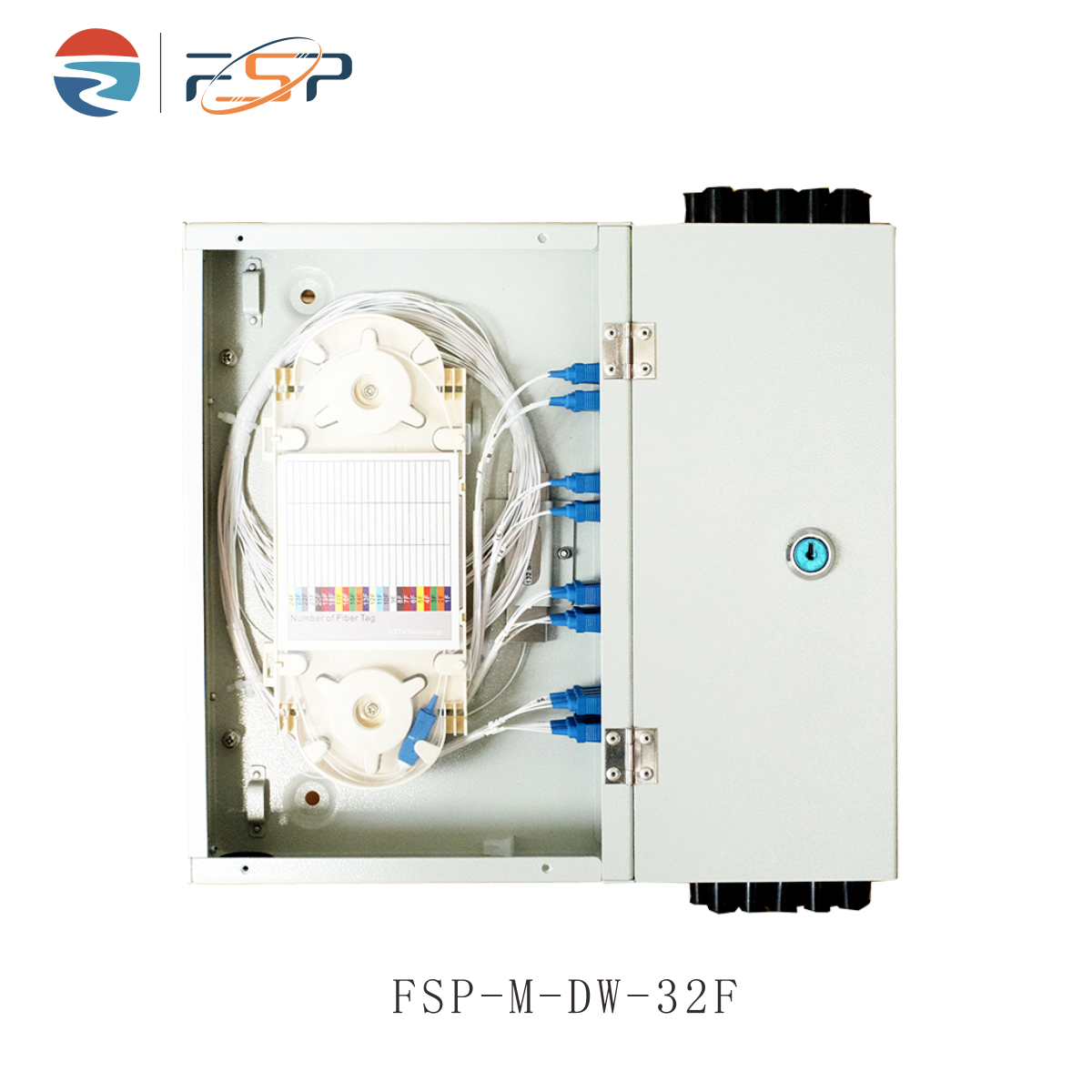

| Model | FSP-M-DW-F |
| Size | 32F : H×W×D = 295 × 320 × 40 (MM) |
| 64F : H×W×D = 375 × 320 × 85 (MM) | |
| Material | Cold Rolled Steel / Aluminum |
| Color | Gray (Default RAL 7035) |
| Splice Capacity | 16~64 Cores |
| Adapter Type | SC / LC/FC |
| Adaptor Capacity |
32~64 Ports |
| Installation Method | Wall mounted |
